Bore Measurement Systems

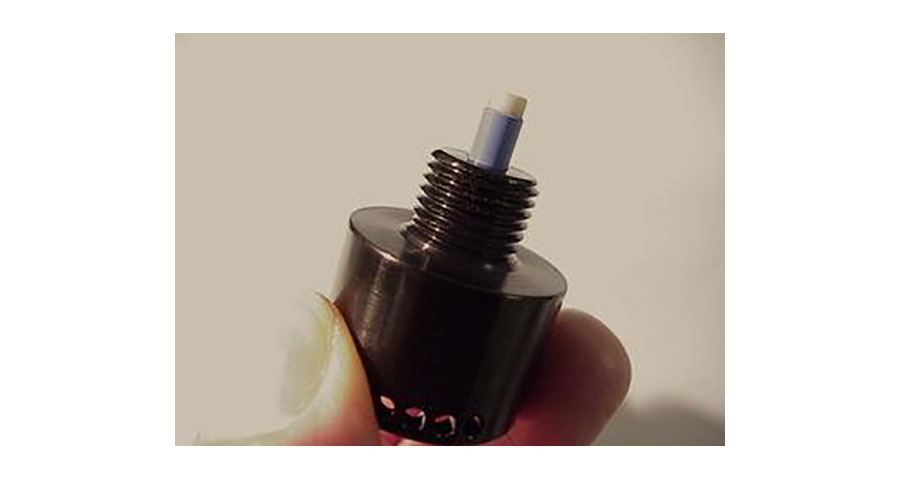

Capacitec supplies non-contact capacitive hole diameter probes by installing two, three, four or more non-contact capacitive displacement sensor around a circular metal probe. In conjuction with Capacitec amplifiers these hole diameter sensor probes can obtain accuracies of 0.1% FS and resolutions of 0.02% FS
When the Capacitec Bragrafx software is added, the profile of the hole or bore diameter can be shown along multiple points along the bore length.

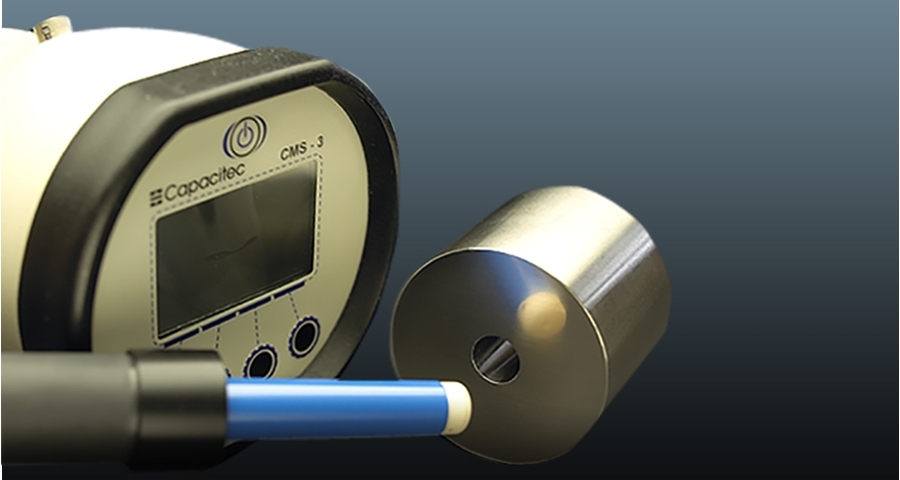

Hole Measurement System Accessories - CONSULT FACTORY
- CMS-3 to USB Adapter 2 meter cable for USB serial communications
- Ground cable for CMS-3 5 feet retractable
- Zigbee wireless receiver range 25 meters.
- 1 Meter Extension cable from CMS-3 Electronics to Probe
- 11 to 14mm Ground Brush for enhanced target grounding of CFRP

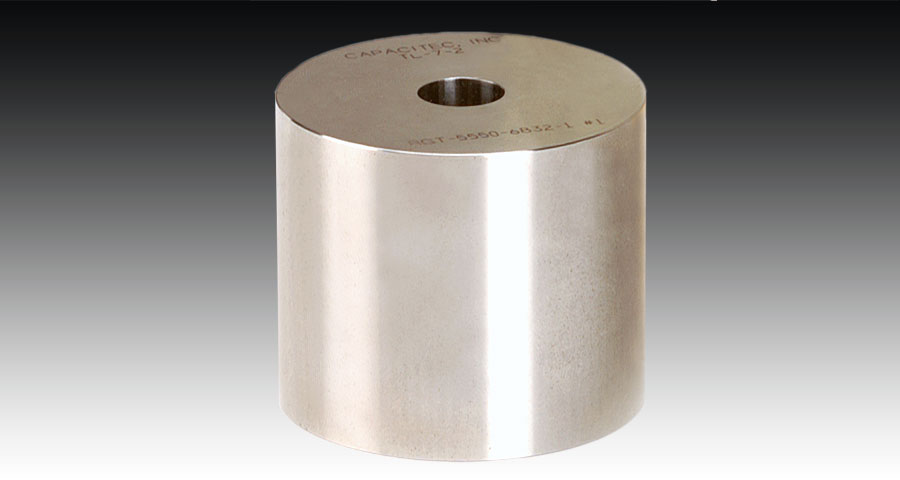

Hole Probe Ring Gauge Standard - CONSULT FACTORY
Each Straight or Tapered CHP hole probes is quoted with an upper and lower limit certified diameter gage ring standard. See chart below for standard certified hole diameter gauge rings.
