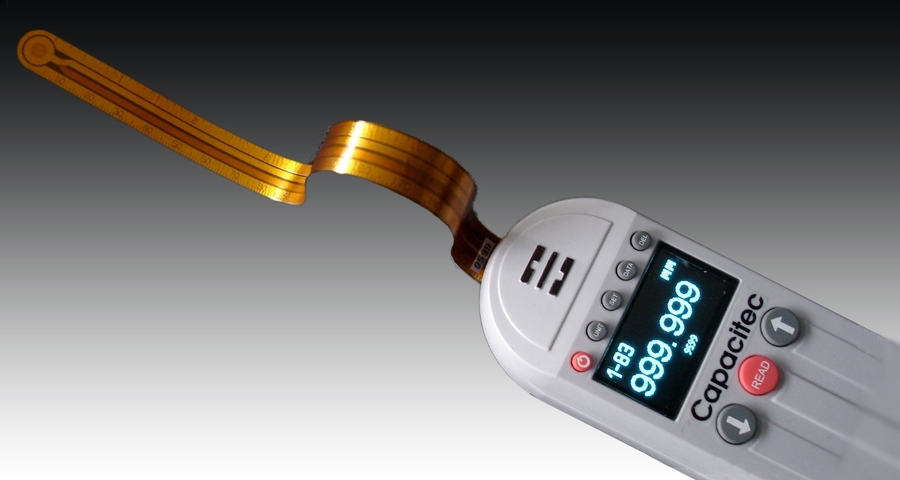

Gapman® Gen3 Portable Electronic Feeler Gauge
Capacitec’s Gapman® Gen3 is a high-precision, non-contact portable thin gap electronic feeler gage, offering enhanced measurement capabilities for an expanded range of mission critical gap measurement applications.
Gapman’s compact form factor features high-precision dual capacitive element technologies for position-compensated measurements in gaps as narrow as 0.0043” or 110 Microns. Gapman supports standard and custom sensor probes that are backwards compatible to Capacitec’s earlier generation of probes and sensors.
The Gapman® Gen3 records and stores data points for easy transfer to SPC, in support of Six Sigma and other quality systems.

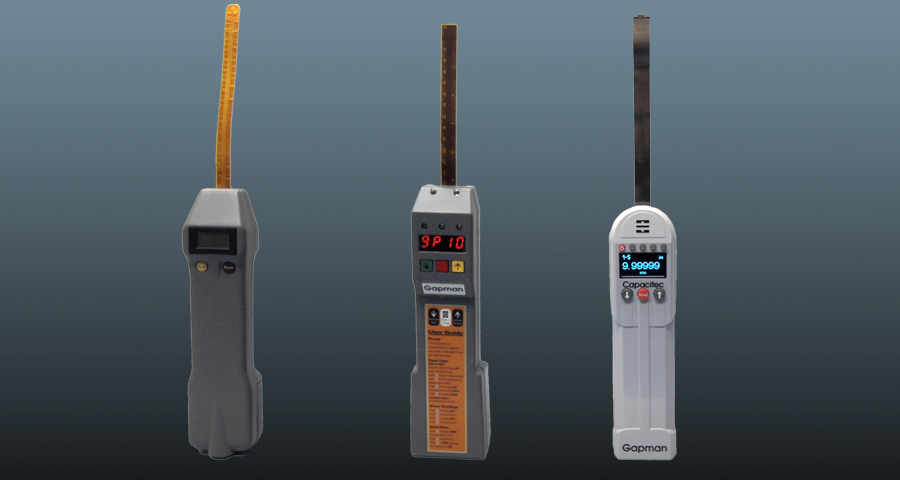

The Gapman’s other "next generation" enhancements include:
- A bright blue alphanumeric Active Matrix OLED display
- External menu selection buttons for inches/millimeters units
- A calibration button to adjust to the standard of a known gap
- Inclusion of an industry standard USB Type A combination data output and external power port.
- Bluetooth Communication
- 10,000 data point logging and storage capabilities
- Extended Battery life doubled of 22 hours minimum with 3 AA lithium batteries
- Compact size of 2.2" x 8.7" x1.1" (56 x 220 x 28 mm)

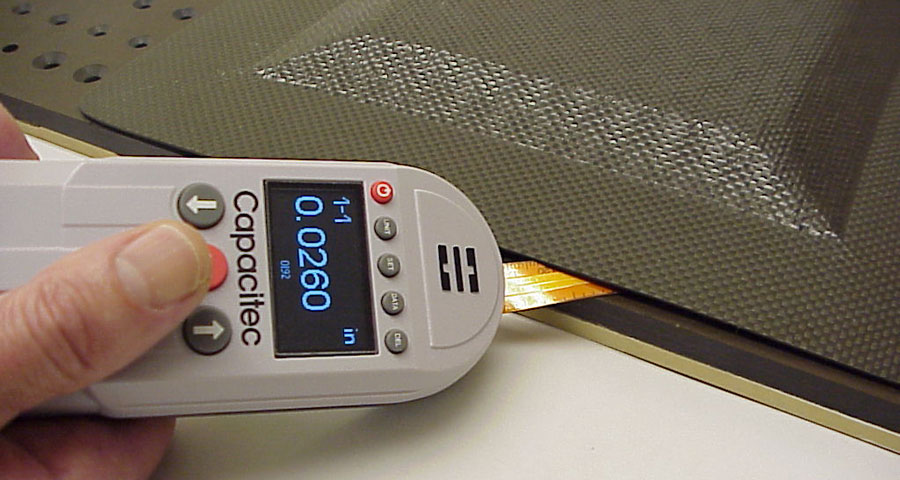

Gapman’s user-friendly design is routinely used to effectively measure gaps within a wider range of applications, including aircraft manufacturing and assembly operations, metal and rigid composite surfaces (CFRP), flexible solar panel lamination, slot-die and roller-to-roller coating operations, parallelism control, film production, and any other non-contact gap measurement application characterized by minimal gap tolerances and complex assemblies.
