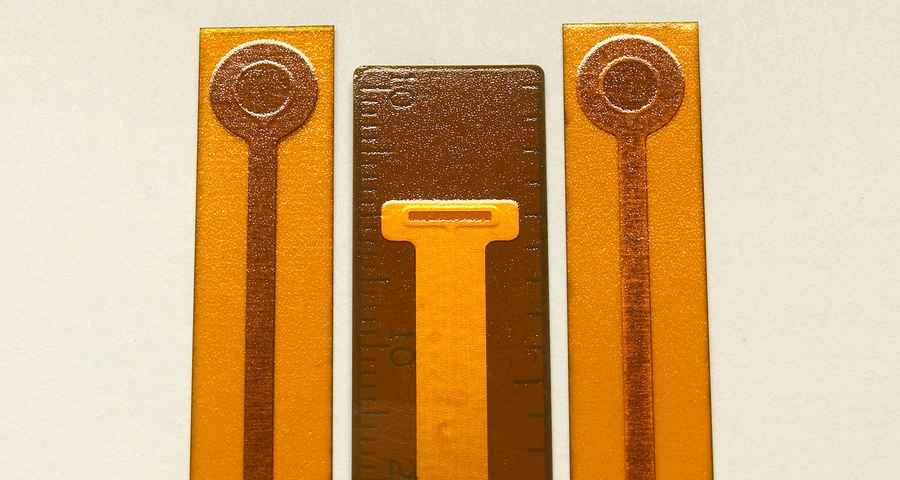

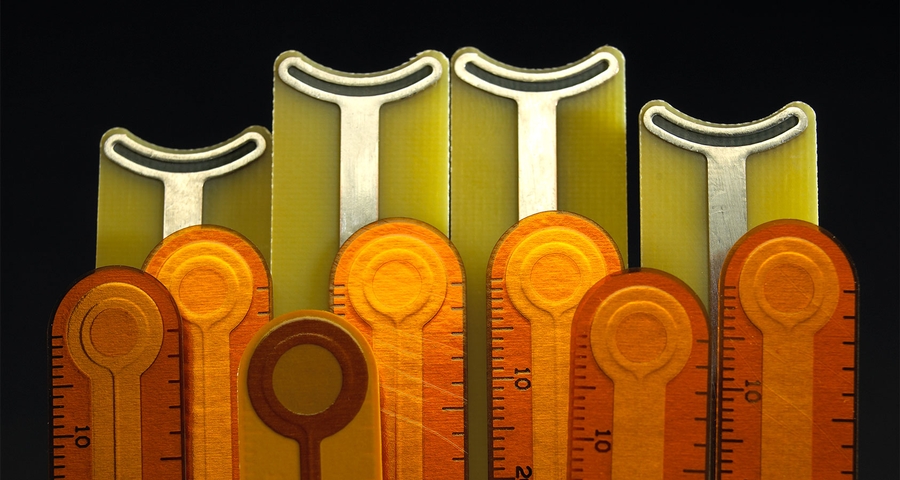

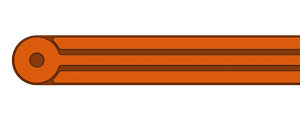

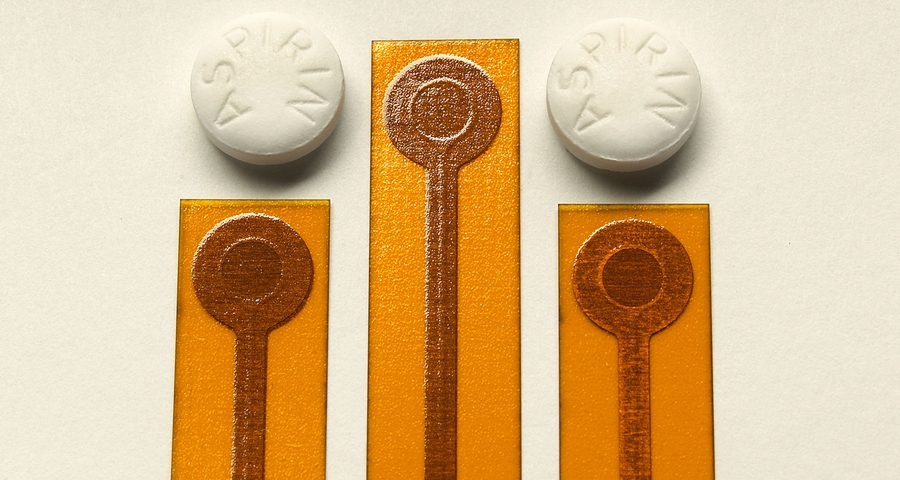

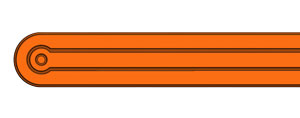

HPD/GPD (double sided) Thin Gap Sensor Wand

HPD Series sensors are typically 0.394” (10mm) wide by a 3.94” to 7.87” (100 to 200mm) long. These double-sided wands are typically used in conjunction with the Gapman or Slot Die Coating System. Gapman wands come standard with Capacitec patented connector free coaxial design or optional FX snap-on connector. GPD Series sensors are typically 0.550” (14mm) wide by a 5.9” to 19.7” (150 to 500mm) long.

Greater range may be substituted for extremely high accuracies of 0.000010 in. (0.25 micron) when using a resolution of 1 Χ 10-6 inches (0.025 micron). Sensors are available with a thickness as low as 0.004" (0.11mm).

Standard Sensor Wands

All Standard Sensor Wands can be used with the Gapman Electronics Package

Size Key: Inch (mm)     Ideal minimum gap = wand thickness + 0.0004" (0.01mm)

STYLESnominal
Thickness		useable
Length		Typical
FS range		Sales drawing
GPD-2 SERIES

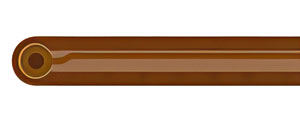

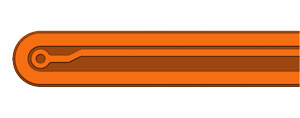

GPD-2(.0074)-A-150Image Placeholder
0.007
(0.19)
5.905
(150)		0.040
(1.00)		5509-7263
GPD-2(.013)-A-1500.013
(0.33)		5.905
(150)		0.040
(1.00)		5509-5962
GPD-2F(.016)-A-1500.016
(0.41)		5.905
(150)		0.040
(1.00)		5509-5840
GPD-2(.018)-A-1500.018
(0.47)		5.905
(150)		0.040
(1.00)		5509-6536
GPD-2(.020)-A-1500.020
(0.51)		5.905
(150)		0.040
(1.00)		5509-5952
GPD-2(.024)-A-1500.024
(0.61)		5.905
(150)		0.040
(1.00)		5509-6452
GPD-2(.028)-A-1500.028
(0.71)		5.905
(150)		0.040
(1.00)		5509-6453
GPD-2(.031)-A-1500.031
(0.79)		5.905
(150)		0.040
(1.00)		5509-6490
GPD-2(.038)-A-150.038
(.97)		5.905
(150)		0.040
(1.00)		5509-6523

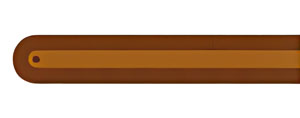

GPD-2G-A-150
Image Placeholder		0.010
(0.25)		5.905
(150)		0.040
(1.00)		5509-5961

GPD-3 SERIES E+ (250°C)

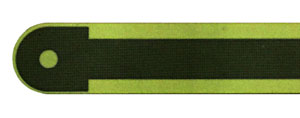

GPD-3(.038)-Eplus-150

Image Placeholder

0.038 (0.965)5.905 (150)0.060 (1.50)5509-8206
GPD-3(.057)-Eplus-1500.057 (1.45)5.905 (150)0.060 (1.50)5509-8201
GPD-3(.066)-Eplus-1500.066 (1.68)5.905 (150)0.060
(1.50)		5509-9104
GPD-3(.079)-Eplus-1500.079 (2.01)5.905 (150)0.060
(1.50)		5509-9104
GPD-3(.105)-Eplus-1500.105 (2.67)5.905 (150)0.060
(1.50)		5509-9104
GPD-3(.127)-Eplus-1500.127 (3.23)5.905 (150)0.060
(1.50)		5509-9104
GPD-3(.146)-Eplus-1500.146
(3.71)		5.905
(150)		0.060
(1.50)		5509-9104

GPD-4 SERIES

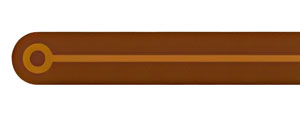

GPD-4F-A-350
Image Placeholder		0.016
(0.41)		13.780
(350)		0.080
(2.00)		5509-6990
GPD-4.5(.0075)-A-250
Image Placeholder		0.008
(0.20)		9.843
(250)		0.090
(2.25)		5509-7224
(OBSOLETE, REPLACED
BY 5509-9060)

GPD-4.5G-A-250

Image Placeholder

0.008
(0.20)		9.843
(250)		0.100
(2.50)		5509-9060

GPD-5 SERIES

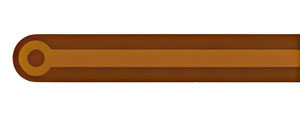

GPD-5G-A-150Image Placeholder0.009
(0.23)		5.905
(150)		0.100
(2.50)		5509-5852
GPD-5F-A-2000.016
(0.41)		7.874
(200)		0.100
(2.50)		5509-5804
GPD-5F-A-5000.016
(0.41)		19.685
(500)		0.100
(2.50)		5509-5906
GPD-5F-E-1500.016
(0.41)		5.905
(150)		0.100
(2.50)		5509-7022
GPD-5F-A-800
0.160
(0.41)
31.496
(800)
0.100
(2.50)
5509-8542

GPD-7 SERIES

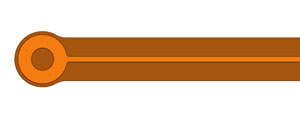

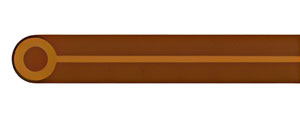

GPD-7F-A-200Image Placeholder0.016
(0.41)		7.874
(200)		0.140
(3.50)		5509-5977
GPD-7F-A-250
0.16
(0.41)
9.843
(250)
0.140
(3.50)
5509-8506
GPD-7F-A-500
0.16
(0.41)
19.685
(500)
0.140
(3.50)
5509-8505

GPD-10 SERIES

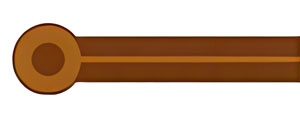

GPD-10F-A-350Image Placeholder0.017
(0.432)		13.780
(350)		0.200
(5.00)		5509-6910
GPD-10F-A-150
0.017
(0.432)
5.91
(150)
0.200
(5.0)
5509-8677

GPD 20X30 SERIES

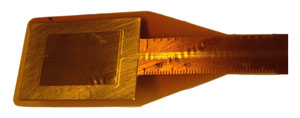

GPD-20X30SP-A-800Image Placeholder
0.039
(1.00)
31.5
(800)
0.472
(12.00)
5509-5991

GPD-CUSTOM

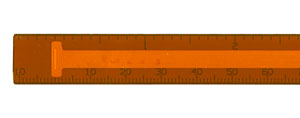

GPD-0.75x6G-A-150Image Placeholder0.009
(0.23)		5.905
(150)		0.047
(1.20)		5509-6321

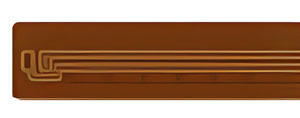

GPD-(3X1)I-A-225Image Placeholder0.006
(0.16)		8.858
(225)		0.038
(0.98)		5509-7106
