Coaxial Extension Cables

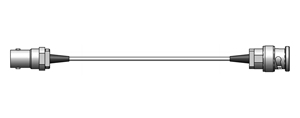

An example of a typical standard coaxial extension cable is a 5-foot extension cable with female BNC to male BNC connectors (Model EC-D-L2-5)
Many coaxial extension cables are available depending upon connector types. Please contact us for additional information and part numbers.
Cable Temperature Range for “A” & ”E” Probes
Type L2 OD .093” (2.36) Teflon ~ 30 pF/ft (90/m), -65°F to 400°F (-54°C to 230°C)
Type L3 OD .063” (1.60) Teflon ~ 26 pF/ft (78/m), -65°F to 446°F (-54°C to 230°C)
Cable Temperature Range for “V” Probes, -98°F to 1600°F (-72°C to 870°C)
Type T OD .063” (1.60) Semi-rigid Inconel 600 powder filled ~ 60 pF/ft (180/m)
Type N OD .142” (3.61) Flexible Inconel Braided ~ 20 pF/ft (60/m)
Type ND OD .165” (4.19) Low Impedance Shield Version of N ~ 35 pF/ft (105/m)

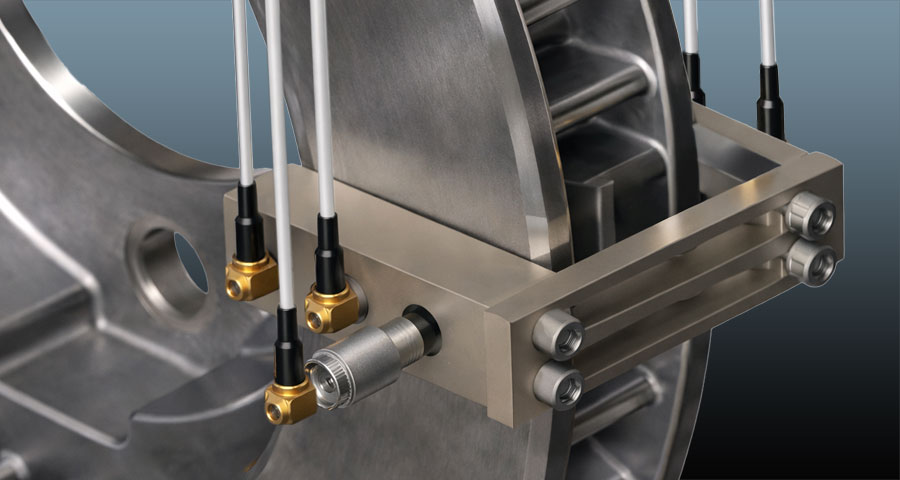

Coaxial Connectors
Standard coaxial connectors for Capacitec sensors are BNC connectors. Microdot and MCX connectors are optional. Additional custom connectors may be available upon request.
When measurement is required inside sealed enclosures such as vacuum chambers, Capacitec can assist in locating special isolated coaxial “pass through” connectors.

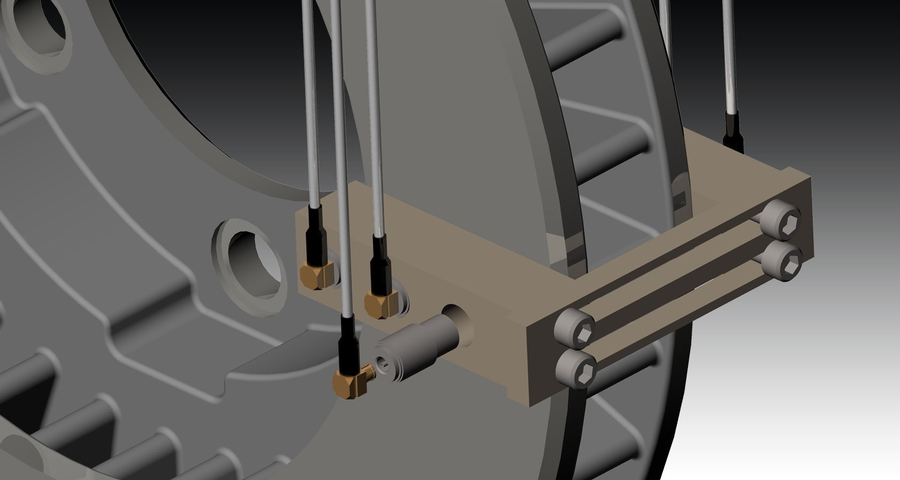

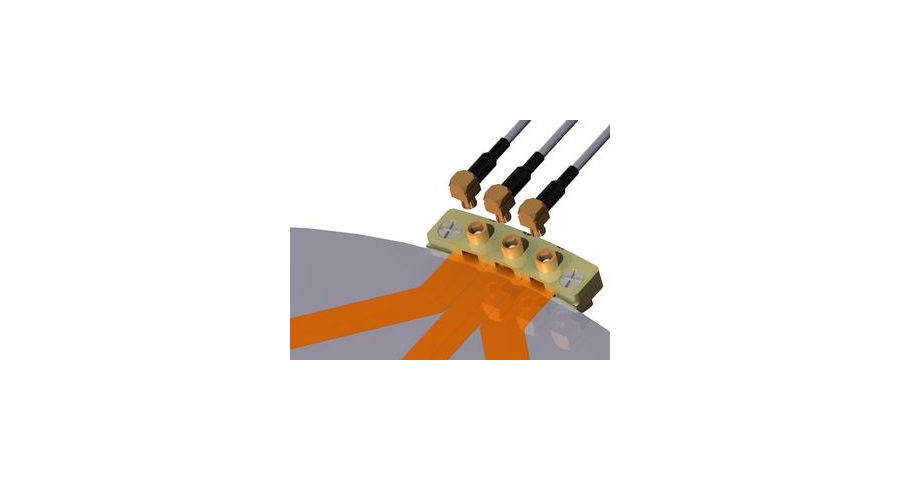

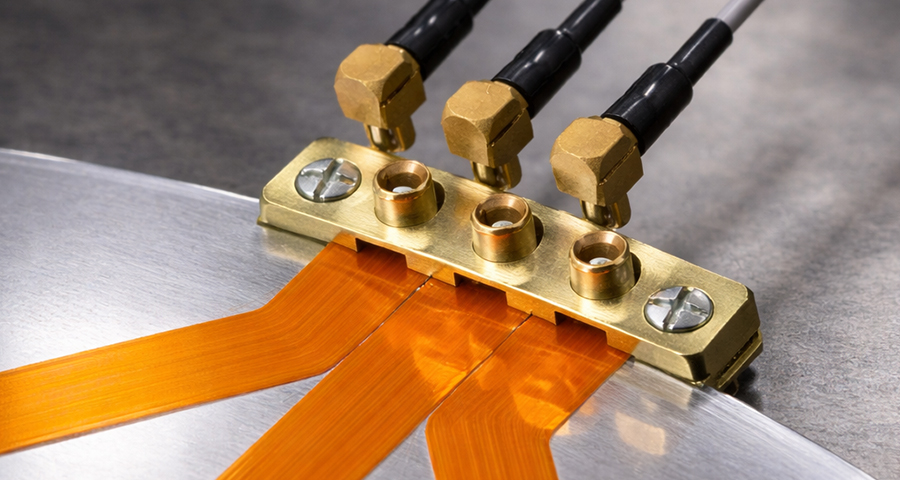

Standard multi-coax connectors are available for customers using multiple channels of electronics and looking to simplify their connections.
Please contact Capacitec technical experts for additional information on available connector options
Standard Coaxial Cables and Connectors
| STYLE | CONNECTOR ONE | CONNECTOR TWO | CABLES | STANDARD LENGTH | ASSEMBLE DRAWINGS |
|---|---|---|---|---|---|

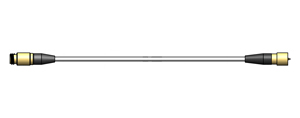

EC-A-L2-5 | Female Microdot | Male Microdot | L2 | 5' | |

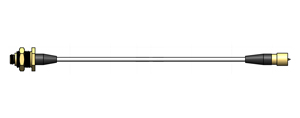

EC-AB-L2-5 | Female Bulkhead Microdot | Male Microdot | L2 | 5' | |

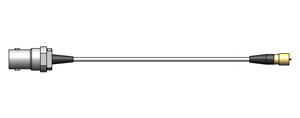

EC-B-L2-5 | Female BNC | Male Microdot | L2 | 5' | |

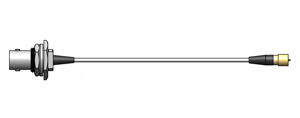

EC-BB-L2-5 | Female BNC Panel Mount | Male Microdot | L2 | 5' | |

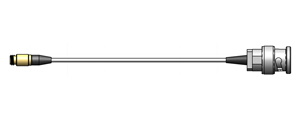

EC-C-L2-5.jpg) | Female Microdot | Male BNC | L2 | 5' | |

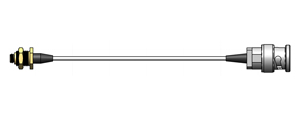

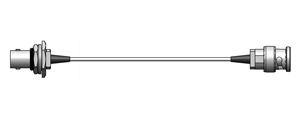

EC-CB-L2-5 | Female Bulkhead Microdot | Male BNC | L2 | 5' | |
EC-D-L2-5.jpg) | Female BNC | Male BNC | L2 | 5' | |
EC-DB-L2-5 | Female BNC Panel Mount | Male BNC | L2 | 5' | |

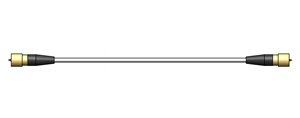

EC-AM-L2-5 | Male Microdot | Male Microdot | L2 | 5' | |

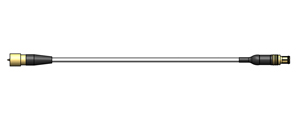

EC-AMX-L2-5 | Male Microdot | Male Suhner | L2 | 5' | |

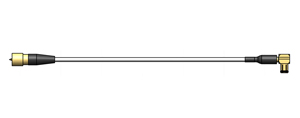

EC-AMX90-L2-5 | Male Microdot | Male Suhner 90° | L2 | 5' | |

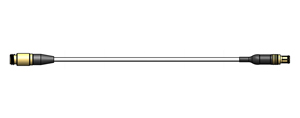

EC-AX-L2-5 | Female Microdot | Male Suhner | L2 | 5' | |

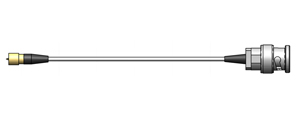

EC-BM-L2-5 | Male Microdot | Male BNC | L2 | 5' | |

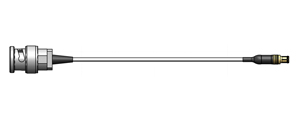

EC-CMX-L2-5.jpg) | Male Suhner | Male BNC | L2 | 5' | |

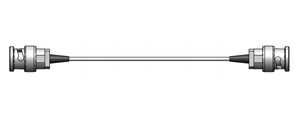

EC-DM-L2-5 | Male BNC | Male BNC | L2 | 5' | |

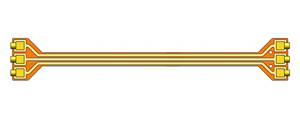

EC-3FX-3FX-TF-0.75 | Male Suhner 90° | Male Suhner 90° | Flex | 9" | |
2EC-MX90-MX90-L2 | Male Suhner 90° | Male Suhner 90° | L2 Spiral Wrapped With Ground Cable | 5' | |

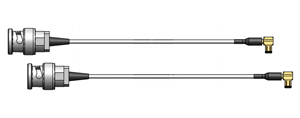

2EC-CMX90-L2-5.jpg) | Male BNC | Male Suhner 90° | L2 Spiral Wrapped With Ground Cable | 5' | |

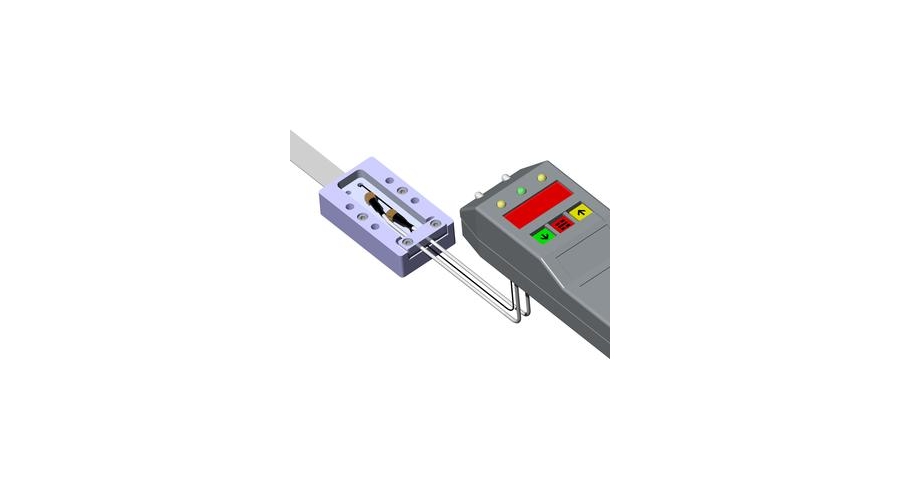

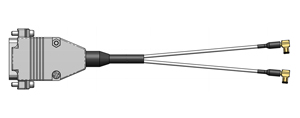

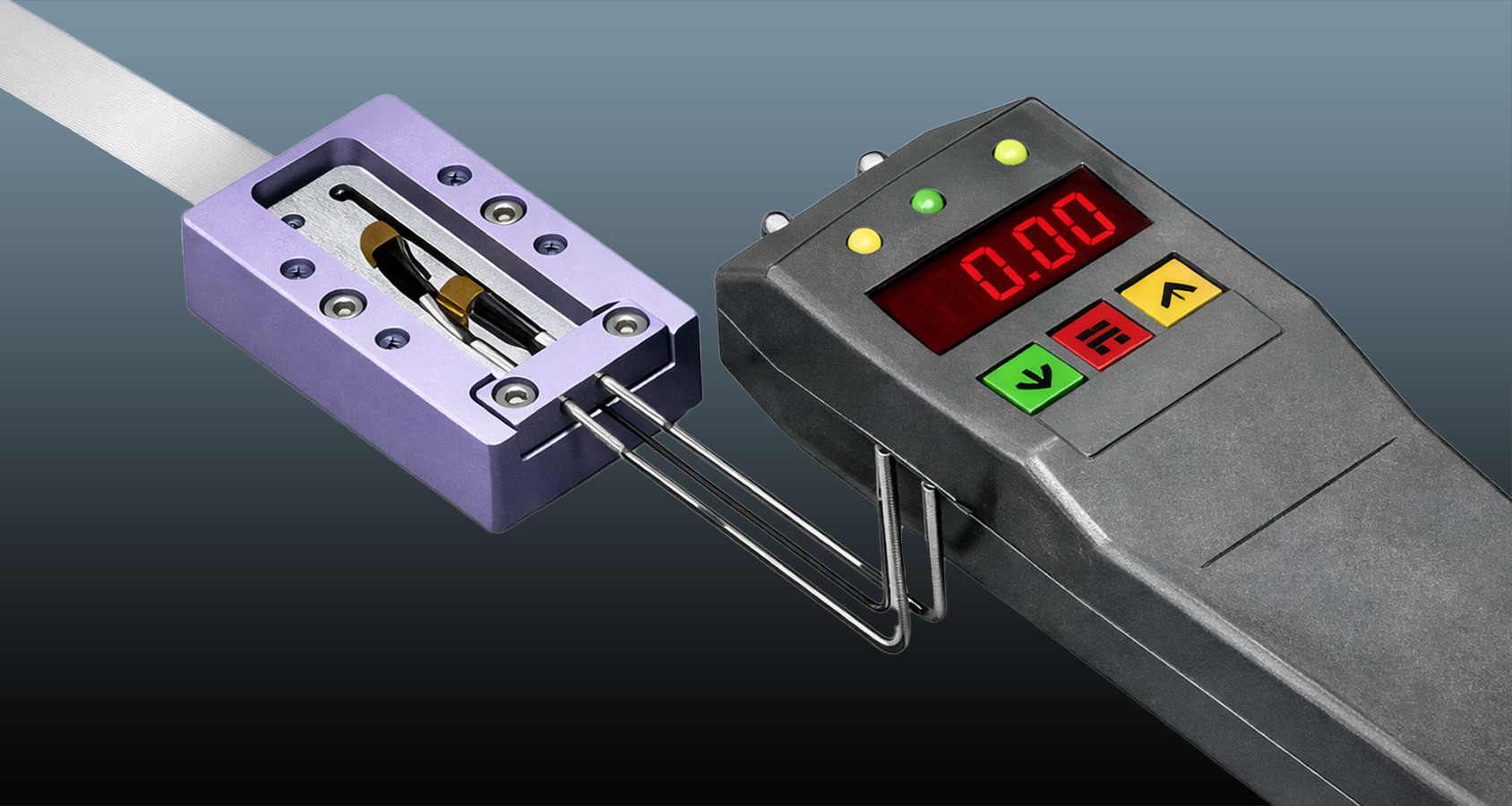

2EC-MX90-FTRW.jpg) | Gapman/ Gapmaster | Male Suhner 90° | L2 | 5' | |

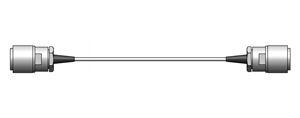

| EC-CMT-L2-5 | Male Trompeter | Male Trompeter | L2 | 5' | |

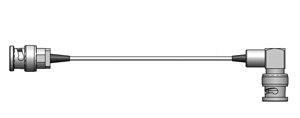

| EC-DM90-L2-5 | Male BNC | Male BNC 90° | L2 | 5' | |

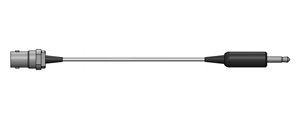

| EC-DOP-L2-5 | #750 Plug | Female BNC | L2 | 5' | |

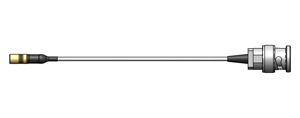

| EC-FMX-L2-5 | Female Suhner | Male BNC | L2 | 5' | |

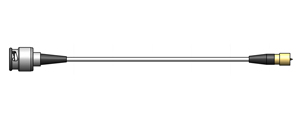

| EC-MBM-L2-5 | Male BNC (Mini) | Male Microdot | L2 | 5' | |

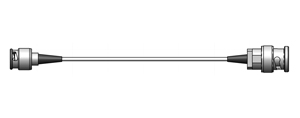

| EC-MDM-L2-5 | Male BNC (Mini) | Male BNC | L2 | 5' | |

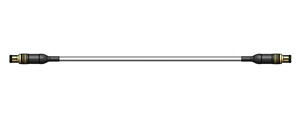

| EC-XMX-L2-5 | Male Suhner | Male Suhner | L2 | 5' | |

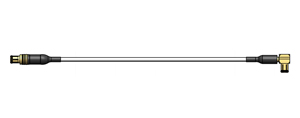

| EC-XMX90-L2-5 | Male Suhner | Male Suhner 90° | L2 | 5' | |

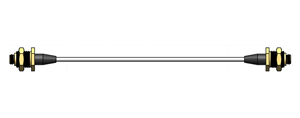

| EC-MB-MB-L2-5 | Female Bulkhead Microdot | Female Bulkhead Microdot | L2 | 5' | |

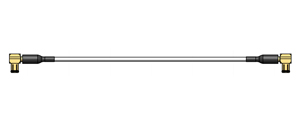

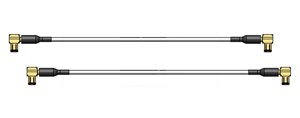

| EC-MX90-MX90-L2-5 | Male Suhner 90° | Male Suhner 90° | L2 | 5' |
