Gap Measurement Cables & Connectors

Coaxial Extension Cables

An example of a typical standard coaxial extension cable is a 5-foot extension cable with female BNC to male BNC connectors (Model EC-D-L2-5)

Many coaxial extension cables are available depending upon connector types. Please contact us for additional information and part numbers.

Cable Temperature Range for “A” & ”E” Probes, -65°F to 446°F (-54°C to 230°C)

Type L2 OD .093” (2.36) Teflon ~ 30 pF/ft (90/m)

Type L3 OD .063” (1.60) Teflon ~ 26 pF/ft (78/m)

Type I2 OD .125” (3.18) Teflon ~ 14 pF/ft (42/m)


Cable Temperature Range for “V” Probes, -98°F to 1600°F (-72°C to 870°C)

Type T OD .063” (1.60) Semi-rigid Inconel 600 powder filled ~ 60 pF/ft (180/m)

Type N OD .142” (3.61) Flexible Inconel Braided ~ 20 pF/ft (60/m)

Type ND OD .165” (4.19) Low Impedance Shield Version of N ~ 35 pF/ft (105/m)

Displacement or Gap Application Inquiry Form
Fill in our Inquiry Form and we'll call you for a FREE technical review of your application!

Coaxial Connectors

Standard coaxial connectors for Capacitec sensors are BNC connectors. Microdot and MCX connectors are optional. Additional custom connectors may be available upon request.

When measurement is required inside sealed enclosures such as vacuum chambers, Capacitec can assist in locating special isolated coaxial “pass through” connectors.

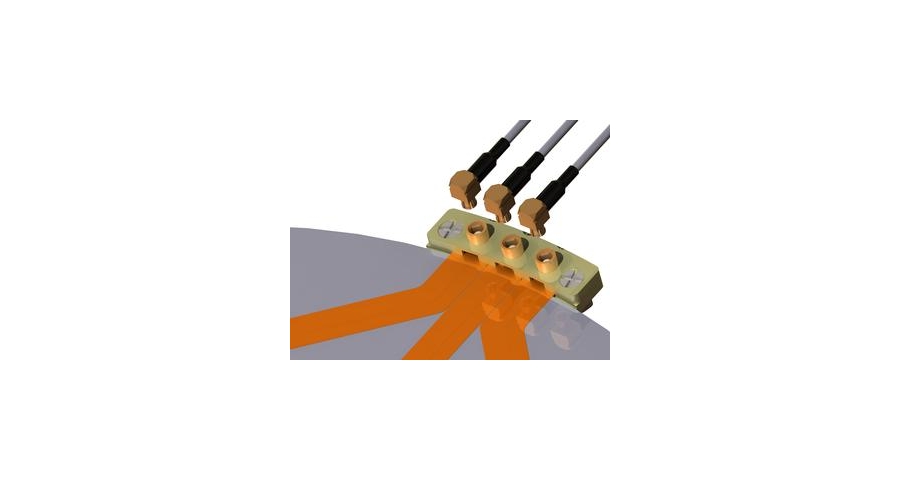

Standard multi-coax connectors are available for customers using multiple channels of electronics and looking to simplify their connections.

Please contact Capacitec technical experts for additional information on available connector options

Standard Coaxial Cables and Connectors

STYLE
CONNECTOR
ONE
CONNECTOR
TWO
CABLES
STANDARD
LENGTH
 EC-A-L2-5
Female
Microdot
Male Microdot
L2
 5'
EC-AB-L2-5
Female
Bulkhead
Microdot
Male Microdot
L2
5'
EC-B-L2-5
Female BNC
Male Microdot
L2
5'
EC-BB-L2-5
Female BNC
Panel Mount
Male Microdot
L2
5'
EC-C-L2-5
Image Placeholder
Female
Microdot
Male BNC
 L2
5'
EC-CB-L2-5
Female
Bulkhead
Microdot
Male BNC
L2
5'
EC-D-L2-5Image Placeholder
Female BNC
Male BNC
L2
5'
EC-DB-L2-5
Female BNC
Panel Mount
Male BNC
L2
5'
EC-AM-L2-5
Male Microdot
Male Microdot
L2
5'
EC-AMX-L2-5
 Male Microdot
 Male Suhner
L2
5'
EC-AMX90-L2-5
Male Microdot
 Male Suhner 90°
L2
 5'
EC-AX-L2-5
Female Microdot
 Male Suhner
 L2
5'
EC-BM-L2-5
Male Microdot
Male BNC
L2
5'
EC-CMX-L2-5

Male Suhner
Male BNC
L2
5'
EC-DM-L2-5Image Placeholder
Male BNC
Male BNC
L2
5'
EC-3FX-3FX-TF-0.75
Male Suhner 90°
Male Suhner 90°
Flex
9"
2EC-MX90-MX90-L2
Male Suhner 90°
Male Suhner 90°
L2 Spiral Wrapped With Ground Cable
5'
2EC-CMX90-L2-5
Male BNC
Male Suhner 90°
L2 Spiral Wrapped With Ground Cable
5'
2EC-MX90-FTRW
 Gapman/
Gapmaster
Male Suhner 90°
L2
5'
EC-CMT-L2-5
Male Trompeter
Male Trompeter
L2
5'
EC-DM90-L2-5
Male BNC
Male BNC 90°
L2
5'
EC-DOP-L2-5
#750 Plug
Female BNC
L2
5'
EC-FMX-L2-5
Female Suhner
Male BNC
L2
5'
EC-MBM-L2-5
Male BNC (Mini)
Male Microdot
L2
5'
EC-MDM-L2-5
Male BNC (Mini)
Male BNC
L2
5'
EC-XMX-L2-5
Male Suhner
Male Suhner
L2
5'
EC-XMX90-L2-5
Male Suhner
Male Suhner 90°
L2
5'
EC-MB-MB-L2-5
Female Bulkhead
Microdot
Female Bulkhead Microdot
L2
5'
EC-MX90-MX90-L2-5
Male Suhner 90°
Male Suhner 90°
L2
5'
